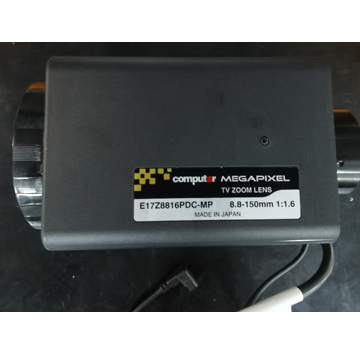

E17Z8816PDC-MP Computar 1/1.8 type 3 Megapixel Cameras, Motorized Zoom
Model No. E17Z8816PDC-
Focal Length 8.8mm ‐ 150mm
Max. Aperture Ratio 1:1.6
Max. Image Circle φ8.9mm
Effective Front φ56.6mm
Lens Aperture Rear φ14.9mm
Back Focal Length 13.5mm
Flange Back Length 17.526mm
Operation Range
Iris F1.6 ‐ F500C
Focus 4m ‐ lnf.
Zoom 8.8mm ‐ 150mm
Mount C‐Mount
Filter Size M72 P=0.75mm
Tripod Screw 1/4 -20UNC
Control
Iris DC Auto Iris
Focus Motorized
Zoom Motorized
Dimensions W85mm x H85.8mm x D158.5mm
Weight 1160g
Angle of View 1/1.8 type (4:3)
D 54.4°‐ 3.4°
H 44.1°‐ 2.8°
V 33.4°‐ 2.1°1
1/2 type (4:3)
D 49.3°‐ 3.1°
H 39.9°‐ 2.5°
V 30.1°‐ 1.9°
1/3 type (4:3)
D 37.4°‐ 2.3°
H 30.1°‐ 1.9°
V 22.7°‐ 1.4°
Iris Focus Zoom
Supply Voltage DC6V DC6V
Current 90mA or less 90mA or less
Response Time Approx. 5.4 sec. Approx. 6.4 sec.
Preset Potentiometer 5kΩVR 5kΩVR
