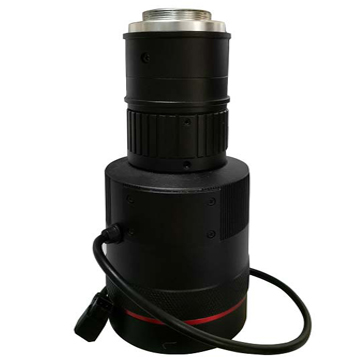

C-P170IR(10MP)-1F044 10 Megapixel Prime Lens
Resolution 10 Megapixel
Image format 1"
Focal length 170mm
Aperture F4.4
Mount C
Field Angle
D×H×V(°)1(16*12.8*9.6)  2/3(11*8.8*6.6)
D             5.4              3.72
H             4.32             2.97
V             3.25             2.23
Optical Distortion 0.27% in Max Circle 16.6mm
CRA ≤4.03°
M.O.D. 5m

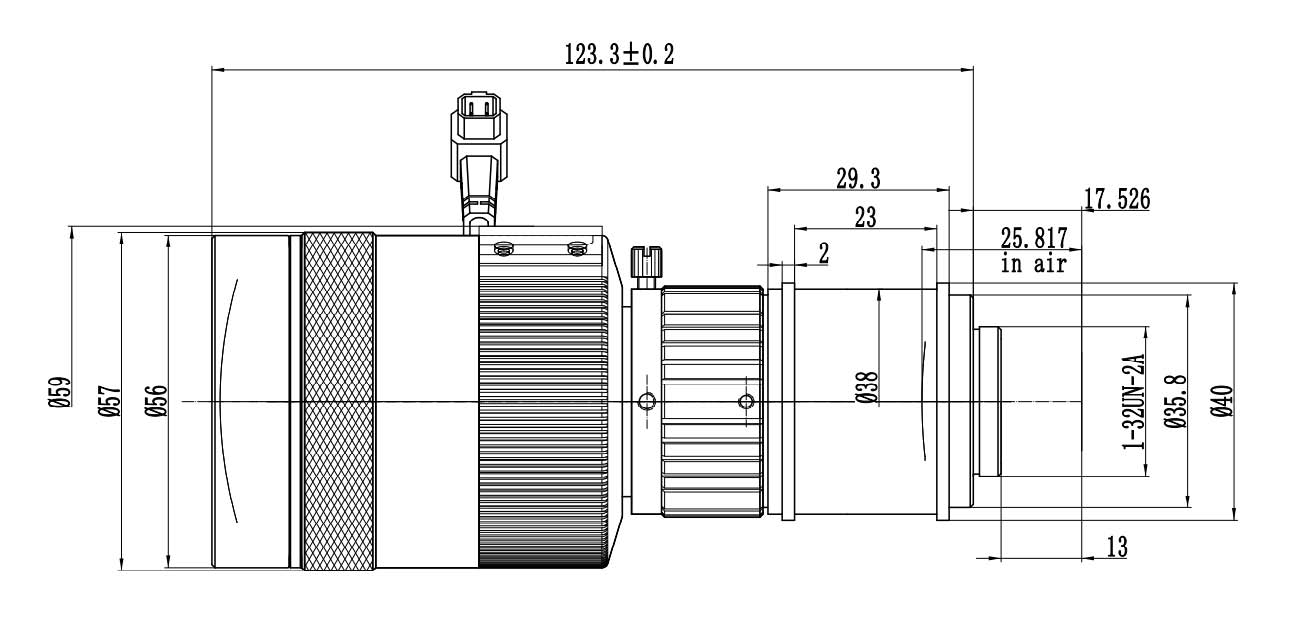

Dimension Φ59×123.3mm
Weight 492.5g±5g
Flange BFL 17.53mm
BFL 25.817mm(in air)
MBF 13mm(in air)
Application Area Security industry, surveillance
 Lens structure 6G
Optical elements shape
5 meniscus+1 biconvex
IR Correction Yes
Operation
Iris P-Iris
Focus  Manual
Zoom /
Operating temperature -30℃～+60℃
Size tolerance（mm）： 0-10±0.05 10-30±0.10 30-120±0.20
Angle tolerance ±2°
