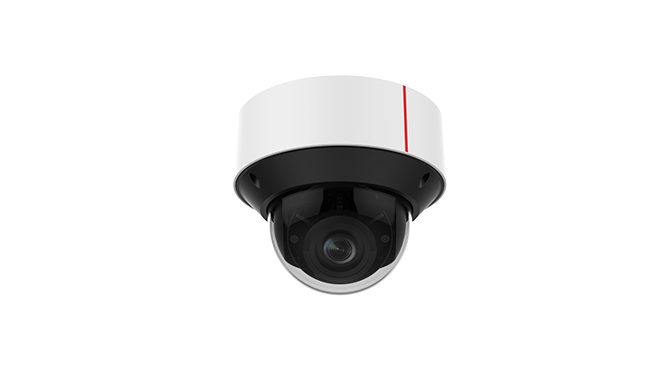

IPC6355-VRZ Huawei holosens 5MP IR Motorized Zoom Fixed Dome Camera
Brand：Huawei Holosens
Model：IPC6355-VRZ
Lens:2.8-12mm
Detail
IPC6355-VRZ Huawei holosens 5MP IR Motorized Zoom Fixed Dome Camera
Supports behavior analysis;
1/2.7" CMOS sensor;
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
CPU Hi3516A V100
Memory DDR3 0.5 GB
Flash type SPI NAND Flash 128.0 MB
Max resolution 5MP 2688(H)*1944(V)
Sensor size 1/2.7"
Min illumination Color: 0.005 lux (F1.2, AGC ON); B/W: 0.001 lux (F1.2, AGC ON)
Focal length 2.8–12 mm
Angle of view Horizontal: 29.5° (T) to 88° (W end); vertical: 22.1° (T) to 64° (W)
IR range 50 m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Behavior analysis Fast movement,Abandoned object,Removed object,Tripwire crossing,Intrusion,Area entry or exit,Loitering
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Power type 12 V DC and PoE (IEEE 802.3at)
Power consumption Maximum: 15.3 W; typical: 4.5 W (infrared illuminator enabled: 7 W)
Operating temperature –30°C to +50°C (infrared illuminator disabled); –30°C to +40°C (infrared illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
IP rating IP67
IK rating IK10
