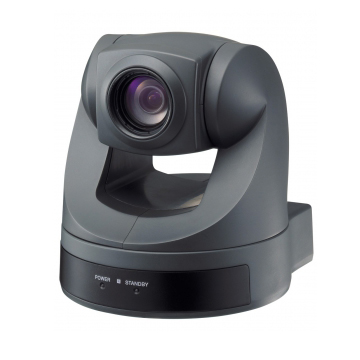

EVI-D70/EVI-D70P(PAL) Pan Zilt Zoom video camera

Brand:SONY

Model:EVI-D70/EVI-D70P(PAL)

Detail

EVI-D70/EVI-D70P(PAL) The EVID70/EVID70P is a Pan Zilt Zoom video camera for remote shooting and remote monitoring applications.
Specifications


Camera
Image Sensor
1/4 type EXview HAD CCD
Image Sensor (Number of Effective Pixels)
752 x 582
Signal System
PAL
Minimum Illumination (50IRE)
1 lx (F1.4)
S/N Ratio
More than 50 dB
Gain
Auto/Manual (-3 to +28 dB, 2 dB steps)
Shutter Speed
1 to 1/10,000 s
Exposure Control
Auto, Manual, Priority AE, Exposure compensation, Back-light compensation
White Balance
Auto/ATW/Indoor/Outdoor/One push/Manual
Optical Zoom
18x
Digital Zoom
12x
Focusing System
Auto/Manual
Horizontal Viewing Angle
48 degrees (wide) to 2.7 degrees (tele)
Focal Length
F1.4 to F3.0
f=4.1 mm (wide) to 73.8 mm (tele)
Minimum Object Distance
10 mm (wide end) to 800 mm (tele)
Pan/Tilt Angle
Pan: ±170°, Tilt: + 90°/-30°
Pan/Tilt Speed (Max.)
Pan: 100°/sec, Tilt: 90°/sec
Preset Position
6
Camera Features
Auto ICR
Yes
Wide-D
No
Image Stabilization
No
Image Flip
Yes
Auto Power Off
Yes
Night Power Off
Yes
Interface
Sd Video Output
VBS, Y/C
Camera Control Interface
RS-232C/RS-422
(VISCA)
Sync. System
INT
General
Power Requirements
DC 10.8 to 13.2 V
Power Consumption
12 W
Operating Temperature
32°F to 104°F
0°C to 40°C
Storage Temperature
-4°F to +140°F
'-20°C to +60°C
Dimensions (W x H x D) *[1]
5 1/4 x 5 3/4 x 5 3/4 inches
132 x 144 x 144 mm
Mass
950 g
2 lb 2 oz
Body Color
Black/White
Wide Conversion Lens Attachable
Yes
Mountable Angle
±15°
Ceiling Mount
Yes
Supplied Accessories
Operating instructions (1)
IR remote commander unit (1)
Ceiling bracket (1)
AC adaptor (1)
Notes
Note
*[1] The values for dimensions are approximate.
