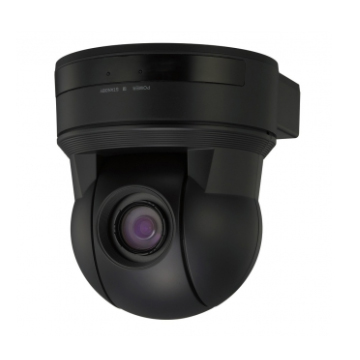

EVI-D80N Standard Definition PTZ camera

Brand:SONY

Model:EVI-D80N

Detail

EVI-D80N Standard Definition PTZ camera

Specifications


Specifications
Image Sensor
1/4-type CCD
Signal System > HD
Signal System > SD
NTSC
Lens > Focal Length
f = -4.1 mm (Wide) to 73.8 mm (Tele)
F1.4 to F3.0
Lens > Optical Zoom
18x
Lens > Digital Zoom
12x
Min. Object Distance
10 mm (wide) - 800 mm (tele)
*Default: 290 mm
Horizontal Viewing Angle
48.0 degrees (wide) to 2.8 degrees (tele)
Focus Systems
Auto, One-push AF, Manual, Infinity
Min. Illumination
0.4 lx (F1.4, 50 IRE)
Shutter Speed
1 to 1/10,000 s
Gain
Auto/Manual/Max. AE Gain Limit
(-3 dB to +28 dB, 2 dB steps)
White Balance
Auto, Indoor, Outdoor, One-push,
Manual
Wide-D
No
Exposure Control
Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow Shutter AE
Auto Icr
No
S/N Ratio
More than 50 dB
(3D Noise Reduction)
Pan/Tilt. > Angle > Pan
±170°
Pan/Tilt. > Angle > Tilt
+90°/-20°
Pan/Tilt. > Angle > Pan
100°/sec
Pan/Tilt. > Angle > Tilt
90°/sec
Preset Positions
6
Video Output > HD
Video Output > SD
VBS, Y/C
Camera Control > Interface
RS-232C/RS-422
Camera Control > Protocol
VISCA
Power Requirements
DC 12 V
Power Consumption
6 W
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to +60°C (-4°F to +140°F)
Mass
1,440 g (3 lb 3 oz)
Dimensions (W x H x D)
145 x 164 x 164 mm
(5 3/4 x 6 1/2 x 6 1/2 inches)
Body Colour
Black, White
Supplied Accessories
AC adaptor, AC power cable, IR remote commander unit, Ceiling bracket, Operating instructions, RS-422 connector plug
