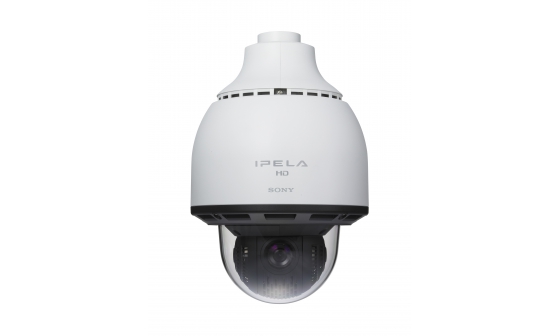

SNC-RH164 Sony 720p/30 fps Rapid Dome Camera

Specifications
Camera
Image Sensor1/3 type HD CMOS sensor
Number of Effective PixelsApprox. 2.0 Megapixels
Signal SystemNTSC/PAL (switchable)
Sync SystemInternal synchronization
Minimum Illumination (50 IRE)Color : 2.1 lx (XDNR ON, VE ON, Slow Shutter OFF, 50 IRE)
B/W : 0.19 lx (XDNR ON, VE ON, Slow Shutter OFF, 50 IRE)
Minimum Illumination (30 IRE)Color: 1.2 lx (F1.8, AGC ON, 1/30 s)
B/W: 0.08 lx (F1.8, AGC ON, 1/30 s)
S/N Ratio (Gain 0 dB)More than 50 dB
GainAuto / Manual (-3 to +18 dB)
Shutter Speed1/2 s to 1/10000 s
Exposure ControlAuto, Full auto, Shutter-priority, Iris-priority, Manual, EV compensation, Backlight compensation
White BalanceAuto, Indoor, Outdoor, One-push WB, ATW, Manual
LensAuto-focus zoom lens
Powered ZoomYes
Easy ZoomNo
Zoom RatioOptical zoom 10x
Digital zoom 12x
Total zoom 120x
Powered FocusYes
Auto FocusYes
Horizontal Viewing Angle50° to 5.4°
Vertical Viewing Angle28.1° to 3.0°
Focal Lengthf = 5.1 mm to 51 mm
F-NumberF1.8 (wide), F2.1 (tele)
Minimum Object Distance10 mm (wide) to 800 mm (tele)
Pan/Tilt Angle (powered)360 ° endless rotation/210 °
Pan Speed400 degrees/s (max.)
Tilt Speed400 degrees/s (max.)
Number of Preset Positions256
Number of Tour Programs5
Camera Features
Day/NightTrue D/N
Auto-rotation ModeYes
Tone CorrectionVisibility Enhancer
Noise ReductionXDNR
Privacy Masking (number)32
Privacy Masking (shape)Quadrangle
Privacy Masking (color/effect)Opaque 4 colors (Black, Gray (3 scales))
Voice AlertYes
Vandal ResistantIK10
Ingress ProtectionIP66
Superimpose Number3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for a logo mark
Superimpose LanguageEnglish
Menu LanguageEnglish, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese
Smartphone viewerYes
Edge StorageYes
Video
Resolution1280 x 720, 1024 x 576, 800 x 480, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192
Compression FormatH.264, MPEG-4, JPEG
Maximum Frame RateH.264: 30 fps (1280 x 720)
MPEG-4: 30 fps (1280 x 720)
JPEG: 30 fps (1280 x 720)
Bitrate Control ModeCBR/VBR (selectable)
Range of Bit Rate Setting64 Kbps to 8 Mbps
Adaptive Rate ControlH.264
Bandwidth ControlJPEG
Multi streaming CapabilityDual streaming *1
Number of Clients5
Letter BoxYes (1280x 720 mode, aspect ratio: 16:9)
Intelligent Video/Audio Analytics
Analytics ArchitectureDEPA Advanced
Intelligent Motion DetectionYes
Tamper AlarmYes
Advanced Audio DetectionYes
Audio
Compression FormatG.711/G.726
System Requirements
Operating SystemMicrosoft Windows XP
Windows Vista (32 bit)
Windows 7 (32 bit)
ProcessorCPU: Intel Core2 Duo 2 GHz or higher
Memory1 GB or more
Web BrowserMicrosoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver. 3.5 (plug-in free viewer only)
Safari Ver. 4.0 (plug-in free viewer only)
Google Chrome Ver.4.0 (plug-in free viewer only)
SNC toolboxYes
SNC toolbox mobileYes
Network
ProtocolsIPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNC, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)
Number of IP Address/Mac ADDRESS1
QoSDSCP
Multicast Streaming SupportYes
ONVIF ConformanceProfile S
Wireless NetworkYes (with optional SNCA-CFW5)
Wi-Fi CertifiedYes (with optional SNCA-CFW5)
Wi-Fi Protected Setup (WPS)Yes (with optional SNCA-CFW5)
AuthenticationIEEE802.1X
Interface
Analog Video InputYes
Analog Video OutputBNC x1
480 TV lines
Microphone InputMini jack (monaural), MIC IN/LINE IN: 2.2kΩ, 2.45 V DC plug-in power
Line OutputMini jack (monaural), Max output level : 1 Vms
Network Port10BASE-T/100BASE-TX (RJ-45)
Alarm Input (Sensor Input)x4
Alarm Outputx2 (mechanical relay outputs electrically isolated from the camera)
Serial InterfaceRS-232C, RS-422/RS-485 (PELCO D protocol)
Card SlotsCF card x 1
General
Power RequirementsAC 24 V
Power Consumption80 W max.
Operating Temperature-40 to +50℃
-40 to +122°F
Storage Temperature-20 ℃ to + 60 ℃
-4 °F to + 140 °F
Operating Humidity20 % to 90 %
Storage Humidity20 % to 95 %
Built-in HeaterYes
Heater Working Temperature5 °C or less
41 °F or less
Dimensions *2φ238 x 344 mm
φ9 3/8 x 13 5/8 inches
MassApprox. 4.3 kg
Approximate 9 lb 8 oz
External MaterialDome cover: PC
Top sunshade: AES
Coupling: AZ91D
Top cabinet: AZ91D
Sun shade: AES
Dome flange: AZ91D
External ColorTop sunshade: 8.5GY 8.2/0.2
Coupling: 8.5GY 8.2/0.2
Top cabinet: 8.5GY 8.2/0.2
Sun shade:8.5GY 8.2/0.2
Dome flange: 3.5PB 2.2/0.4
Safety RegulationsJATE Technical standard (LAN)
UL2044, IEC60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A)
Supplied AccessoriesCD-ROM (User's Guide, SNC toolbox) (1)
Top sunshade coupling (1)
Belt (1)
Bolts
Cables
Waterproof caps
Warranty card (1)
Installation Manual (1)
Notes
*1Dual streaming (Any combination with JPEG/MPEG-4/H.264, including multiple streams of the same format)
*2The values for dimensions are approximate.
