Brand:AXIS
Model:AXIS Q3505-VE 9MM 0618-009

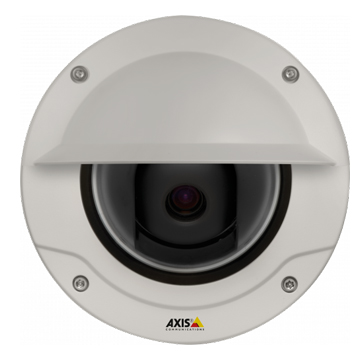

AXIS Q3505-VE 9MM 0618-009 "Day/night fixed dome with support for WDR – Forensic Capture in an IK10+ vandal-resistant outdoor casing. Varifocal 3-9 mm P-Iris lens with remote zoom and focus for installation or monitoring. Multiple, individually configurable H.264 and Motion JPEG streams; full HDTV 1080p/2MP resolution at up to 60 fps. Electronic image stabilization. Video motion detection, shock detection and active tampering alarm. Two-way audio and audio detection. I/O for alarm/event handling. Memory card slot for optional local video storage. Operation in
wide temperature range powered by standard Power over Ethernet. Midspan not included. Includes mounting bracket for wall/ceiling or junction boxes and weather shield against sun, rain or snow."
DISCONTINUED PRODUCT.Recommended replacements:AXIS Q3515-LVE
Technical specifications
Models: AXIS Q3505-VE 9 mm / AXIS Q3505-VE 22 mm
Camera
Image sensor CMOS
Image sensor size 1/2.8
Sensor size in megapixel 2.3
Lightfinder Lightfinder
Wide dynamic range Forensic Capture
Min illumination/ light sensitivity (Color) * 0.18 / 0.28 lux
Min illumination/ light sensitivity (B/W) * 0.04 / 0.06 lux
Video
Max video resolution 1920x1200
Max frames per second 50/60
Day and Night functionality
Yes
Electronic image stabilization
Yes
Lens
Focal length * 3 - 9 / 9 - 22 mm
Horizontal field of view * 105 - 35 / 33 - 16 °
Vertical field of view * 56 - 21 / 18 - 9 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support
Yes
Built-in microphone –
Network
PoE Class 3
Wireless –
Security
Signed firmware –
Secure boot –
General
Remote focus
Yes
Remote zoom
Yes
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature –
Outdoor Ready
Yes
Vandal rating IK10+
IP rating IP66, IP67, IP6K9K
Designed for repaint
Yes
Sustainability –
