Brand:AXIS
Model:XF40-Q2901
Lens Focal length 19mm

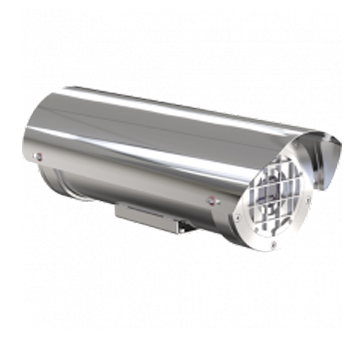

XF40-Q2901 Explosion-Protected Temperature Alarm Camera
Remote temperature monitoring for heavy-duty applications
Detects fires and leaks
Monitors equipment and area temperature
Visual verification
Certified for hazardous applications
Supports advanced analytics
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: XF40-Q2901 19 mm 8.3 fps EAC -60C / XF40-Q2901 19 mm 8.3 fps IA -60C / XF40-Q2901 19 mm 8.3 fps CNEX -60C / XF40-Q2901 19 mm 8.3 fps ATEX IECEx -60C / XF40-Q2901 19 mm 8.3 fps CCOE -60C / XF40-Q2901 19 mm 8.3 fps INMETRO -60C / XF40-Q2901 19 mm 8.3 fps CSA -60C / XF40-Q2901 19 mm 8.3 fps EAC / XF40-Q2901 19 mm 8.3 fps ATEX IECEx / XF40-Q2901 19 mm 8.3 fps CCOE / XF40-Q2901 19 mm 8.3 fps IA / XF40-Q2901 19 mm 8.3 fps CNEX / XF40-Q2901 19 mm 8.3 fps CSA / XF40-Q2901 19 mm 8.3 fps INMETRO / XF40-Q2901 19 mm 8.3 fps UL -50C
Camera
Image sensor Uncooled microbolometer
Image sensor size 336x256
Sensor size in megapixel 0.0
Lightfinder -
Wide dynamic range –
Min illumination/ light sensitivity (Color) –
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 720x576
Max frames per second 8.3
Electronic image stabilization –
Lens
Focal length 19 mm
Optical zoom -
Horizontal field of view 17 °
Vertical field of view - °
Compression
Zipstream –
H.264 Baseline, Main
H.265 –
Motion JPEG
Yes
Network
PoE Class –
Security
Signed firmware –
Secure boot –
TPM –
General
Remote focus –
Remote zoom –
Local storage (memory card slot)
Yes
Outdoor Ready
Yes
IP rating IP66, IP67
Power
Power (max) –
Power (average) –
DC input voltage –
AC input voltage 20-28 V
* Some technical specifications may vary depending on which hardware option you choose.
Power adapters
ECP081208 PS 24 V
Explosion-protected 24 V AC power supply with UL certification
GP2 CCTV Panel 1 PS 24 V
Explosion-protected 24 V AC power supply with ATEX/EAC/IECEx certifications
