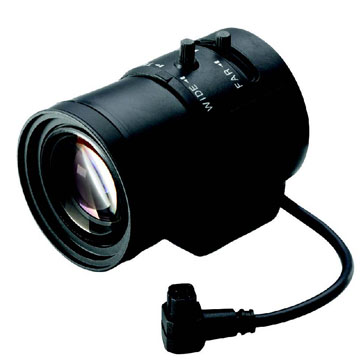

LVF-5003C-P2713 Varifocal lens,2.7-13mm, 3MP, CS mount

Brand:BOSCH

Model:LVF-5003C-P2713

Detail

LVF-5003C-P2713 Varifocal lens,2.7-13mm, 3MP, CS mount

Technical specifications
LVF-5003C-P2713
Maximum sensor
format
1/2.7?inch
Optical resolution 3 Megapixels
Focal length 2.7 - 13 mm
Iris range F1.4 to close
Min object distance 0.3 m (1 ft)
Back focus distance
(values in air)
8 mm (0.315 in)
Weight 87 g (0.19 lb)
Dimensions ? 47 mm (excluding focus and zoom knobs
and iris block) x 75.11 mm
Lens mount CS
Angle of view (HxV) 102 x 74° Wide
LVF-5003C-P2713
1/3-inch sensor 4:3 22.4 x 16.9° Tele
Angle of view (HxV)
1/3-inch sensor 16:9
113 x 60° Wide
24.3 x 13.8° Tele
Angle of view (HxV)
1/2.7-inch sensor
16:9
126 x 66° Wide
26.7 x 15.2° Tele
Angle of view (HxV)
1/2.8-inch sensor
16:9
122 x 64° Wide
25.9 x 14.7° Tele
Iris control 4-pin, P-iris control
Focus ctrl manual
Zoom ctrl manual
IR corrected yes
Environmental
- Operating
Temperature
-10°C to+50°C (+14°F to +122°F)
- Storage Temperature -40°C to +60°C (-40°F to + 140°F)
- Operating Humidity Up to 60% RH non-condensing
Ordering information
LVF-5003C-P2713 Varifocal lens, 2.7-13mm, 3MP, CS
mount
Varifocal P-iris megapixel IR corrected lens with 1/2.7
inch sensor and CS-mount
Order number LVF-5003C-P2713
