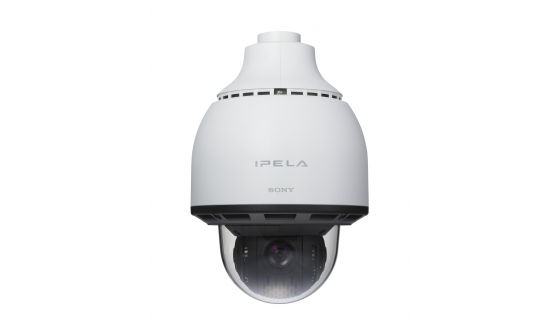

SNC-RS84P Sony Outdoor Unitized SD (PAL) Rapid Dome Camera

Specifications
Camera
Image Sensor1/4 type CCD with Exwave HAD technology
Number of Effective PixelsNTSC: Approx. 0.38 Megapixels
PAL: Approx. 0.44 Megapixels
Signal SystemPAL
Minimum Illumination (50 IRE)Color : 0.8 lx (XDNR ON, VE ON, Slow Shutter OFF, 50 IRE)
B/W : 0.09 lx (XDNR ON, VE ON, Slow Shutter OFF, 50 IRE)
Minimum Illumination (30 IRE)Color: 0.40 lx (F1.6, AGC ON, 1/50 s)
B/W: 0.050 lx (F1.6, AGC ON, 1/50 s)
S/N Ratio (Gain 0 dB)More than 50 dB
GainAuto / Manual (-3 to +28 dB)
Shutter Speed1 s to 1/10000 s
Exposure ControlAuto, Full auto, Shutter-priority, Iris-priority, Manual, EV compensation, Backlight compensation
White BalanceAuto, Indoor, Outdoor, One-push WB, ATW, Manual
LensAuto-focus zoom lens
Powered ZoomYes
Easy ZoomNo
Zoom RatioOptical zoom
Powered FocusYes
Horizontal Viewing Angle57.8°to 1.7°
Focal Lengthf =4.1-73.8mm
F-NumberF1.6 (wide), F4.5 (tele)
Minimum Object Distance320 mm (wide) to 1500 mm (tele)
Pan/Tilt/Rotation Angle (manual)360° endless rotation/ 210°
Pan Speed400 degrees/s (max.)
Tilt Speed400 degrees/s (max.)
Number of Preset Positions256
Number of Tour Programs5 preset tours, 4 shadow tours, 16 presets per one preset tour
IR IlluminatorNo
Camera Features
Day/NightTrue D/N
Wide-DDynaView
Tone CorrectionVE (VE)
Noise ReductionXDNR
Image StabilizerNo
Vandal ResistantIK10
Ingress ProtectionIP66
Video
Resolution720 x 576, 640 x 480, 384 x 288, 320 x 240
Compression FormatH.264, MPEG-4, JPEG
Maximum Frame RateH.264/MPEG-4/JPEG : 25 fps (720 x 576)
Multi streaming CapabilityTriple streaming*1
Number of Clients10
Intelligent Video/Audio Analytics
Analytics ArchitectureDEPA
Intelligent Motion DetectionYes
Audio
Compression FormatG.711/G.726
System Requirements
Operating SystemMicrosoft Windows XP
Windows Vista (32 bit)
Windows 7 (32 bit)
ProcessorCPU: Pentium4 2.4 GHz, Intel Core2 Duo1.8 GHz or higher
Memory1 GB or more
Web BrowserMicrosoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver. 3.5 (plug-in free viewer only)
Safari Ver. 4.0 (plug-in free viewer only)
Google Chrome Ver.4.0 (plug-in free viewer only)
Network
ProtocolsIPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNC, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)
Number of IP Address/Mac ADDRESS1
ONVIF ConformanceProfile S
Wireless NetworkYes (with optional SNCA-CFW5)
AuthenticationIEEE 802.1X
Interface
Analog Video OutputComposite video (1.0 Vp-p)
530 TV lines
Microphone InputMini jack (monaural), MIC IN/LINE IN: 2.2kΩ, 2.45 V DC plug-in power
Line InputMini jack (monaural)
Line OutputMini jack (monaural), Max output level : 1 Vms
Network Port10BASE-T/ 100BASE-TX (RJ-45)
Alarm Input (Sensor Input)x4
Alarm Outputx2
Serial InterfaceRS-232C, RS-422/RS-485
(PELCO D protocol)
Card SlotsCF card x 1
USB SlotsNo
General
Power RequirementsAC 24 V
Power Consumption 23W max.
Operating Temperature-40 to +50℃
-40 to +122°F
Storage Temperature-20℃ to +60℃
-4°F to +140°F
Operating Humidity20 to 90%
Storage Humidity20 to 95%
Dimensions (W x H x D)*2φ238 x 344 mm
φ9 3/8 x 13 5/8 inches
MassApprox. 4.3 kg
Approx. 9 lb 8 oz
Safety RegulationsUL2044, FCC(Class A)
ICES-003 Class A Digital Device
IEC60950-1
EN55022(A)+EN55024+EN50130-4
JATE Technical standard (LAN), VCCI Class A
AN/NZS CISPR22
Supplied AccessoriesCD-ROM (User's Guide, SNC toolbox) (1)
Top sunshade coupling (1)
Belt (1)
Bolts
Cables
Waterproof caps
Warranty card (1)
Installation Manual (1)
Notes
*1Triple streaming (Any combination with JPEG/MPEG-4/H.264, including multiple streams of the same format)
*2The values for dimensions are approximate.
