Brand:AXIS
Model:AXIS P3717-PLE
Lens Focal length 3 - 6 mm
Horizontal field of view 360 °
Vertical field of view 53 - 27 °

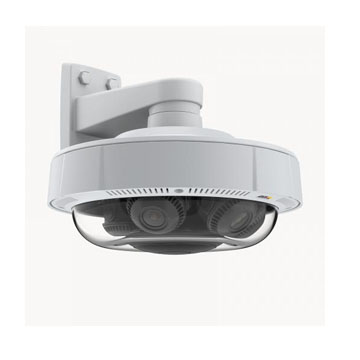

AXIS P3717-PLE Network Camera
MP multidirectional camera with IR for 360° coverage
8 MP, 360° multidirectional camera, with one IP address
360° IR illumination and remote zoom and focus
Axis Lightfinder and Forensic WDR
Flexible positioning of four varifocal camera heads
Axis Zipstream for reduced bandwidth and storage needs
Technical specifications
Models: AXIS P3717-PLE
Camera
Image sensor CMOS
Image sensor size 1/2.8
Sensor size in megapixel 8.0
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.17 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Max video resolution 1920x1080
Max frames per second 25/30
Day and Night functionality
Yes
Electronic image stabilization –
Lens
Focal length 3 - 6 mm
Horizontal field of view 360 °
Vertical field of view 53 - 27 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support –
Built-in microphone –
Network
PoE Class 4
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus
Yes
Remote zoom
Yes
Built-in IR
Yes
Local storage (memory card slot)
Yes
Operating temperature -30 to 50 °C
Outdoor Ready
Yes
Vandal rating IK09
IP rating IP66, IP67
Designed for repaint
Yes
Sustainability PVC free
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS P3717-PLE AR, AU, BR, CN, EU, JP, KR, UK, US 01504-001
AXIS P3717-PLE IN 01504-113
