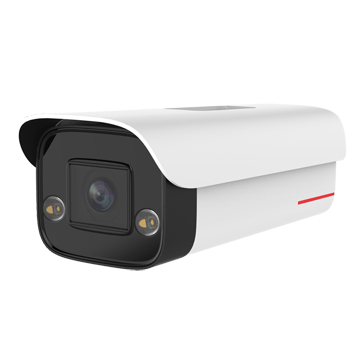

C2150-10-SLU(2.8-12mm) 1T 5MP Softlight AI Bullet Camera

1 TOPS computing power

Supports multi-algorithm switchover, behavior analysis, crowd flow analysis, target detection, and person detection

Supports backlight adaptation, overcast adaptation, and speed adaptation

1/2.7" CMOS sensor

Online loading and upgrade of algorithms

120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast

Supports switchover among multiple algorithms

Key Spec

CPU Hi3516D V300
Computing power 1 TOPS
Memory DDR3 1.0 GB
Flash type SPI NAND Flash 512.0 MB
Max resolution 5MP 2560(H)*1920(V)
Sensor size 1/2.7" CMOS
Min illumination Color: 0.015 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0075 lux (F1.2, AGC ON, 1/30s shutter speed)
Focal length 2.8-12mm
Angle of view Horizontal: 87°; vertical: 46.2°
Illumination distance 20m
Video encoding format MJPEG/H.264/H.265
Video frame rate 5-megapixel: 20 fps; < 5-megapixel: 30 fps or 25 fps
Audio encoding format G.711a/G.711u/G.726/OPUS
Behavior analysis Fast movement/Tripwire crossing/Intrusion/Area entry or exit/Loitering
Crowd flow analysis Queue length/Head counting/Crowd flow statistics
Target Target detection/Target attribute recognition/Target recognition
Person Person detection
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Power type 12 V DC and PoE (IEEE 802.3af)
Power consumption Maximum: 13 W; typical: 3.2 W
Operating temperature –30°C to +60°C
Operating humidity 5% to 95% (non-condensing)
IP rating IP67

Lens/Illuminator
Focal length 2.8-12mm
Max f-number F1.6
Lens aperture type Fixed iris
Angle of view Horizontal: 87°; vertical: 46.2°
Built-in white light illuminator Supported
Illumination distance 20m

General Spec
Power type 12 V DC and PoE (IEEE 802.3af)
Power consumption Maximum: 13 W; typical: 3.2 W
Operating temperature –30°C to +60°C
Operating humidity 5% to 95% (non-condensing)
Surge protection 4 kV
IP rating IP67
Net weight 1 kg
Gross weight 1.2 kg
Device dimensions 206 mmx 88 mm x 107 mm
Package dimensions 297 mm x 115 mm x 140 mm
