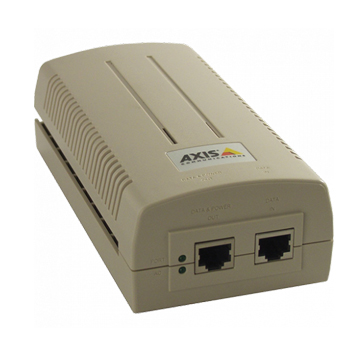

AXIS T8124 High PoE 60 W Midspan 1-port
DISCONTINUED PRODUCT.
Please see the product documentation and support pages for self-help resources.
Recommended replacements:
AXIS T8134 60 W MIDSPAN
For full specifications, check the recommended replacement product datasheet by using the link(s) above.
Midspans Function Data and power are fed to a network video product through an Ethernet cable;
use together with a PoE splitter for a network video product without built-in PoE support AXIS T8123-E/T8124-E:
Built-in surge protection Data rate 10/100/1000 Mbps AXIS T81B22: 10/100 Mbps Connectors Shielded RJ45, EIA 568A and 568B AXIS T81B22:
2-pin DC terminal power connector AXIS T8133/T8134: Power connector C13 AXIS T8125:
2–pin AC terminal power connector Network cables Shielded category 5 (or higher) Wiring Data provided over pairs 1/2 and 3/6 for 10/100 Ethernet,
over all four pairs for Gigabit Ethernet AXIS T81B22/T8133/T8123-E: Power over spare pairs 4/5 (+) and 7/8 (-) AXIS T8134/T8124-E/T8125:
Power over pairs 1/2 (-), 3/6 (+), 4/5 (+) and 7/8 (-)
