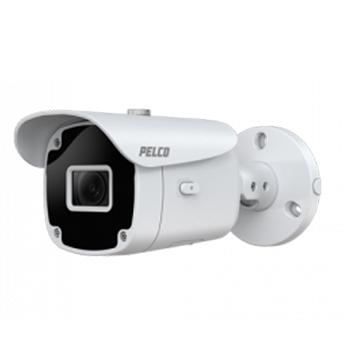

IBV229-1ER IBV529-1ER Pelco 3-9MM IR Environmental Bullet Cameras
Product Features
Excellent low light performance
True Wide Dynamic Range
30 fps @ 1080p, 20 FPS @ 5 MP
Built-in IR illumination up to 30 M
Remote zoom and focus varifocal lens
H.265 and H.264 encoding with Pelco Smart Compression
IP66 for environmental ruggedness
Built-in MicroSD / SDHC / SDXC Card Slot for On-board Storage, 256 GB tested

Models
Resolution Model Number Lens Description
2 MP IBV229-1ER 3 ~ 9 mm Sarix Value Environmental IR Bullet
5 MP IBV529-1ER 3 ~ 9 mm Sarix Value Environmental IR Bullet
Compatible Accessories—Mounting Kits
SRXV-PLM Pole Mount Adapter
SRXV-CM Corner Mount Adapter
IBV-A4S Electrical Box Adapter Plate
IFBV-JB Environmental Junction Box
PoE Power Supplies
POE130-XT Single-port PoE Gigabit extender powered by POE190-BT injector
POE130-AT (US or EU) Single-port PoE+ midspan
POE430-AT (US or EU) 4-port, 30W per port PoEmidspan
POE2436-AT (US or EU) 24-port, 36W PoE midspan
Certifications
CE (Class B)
FCC (Class B)
ICES-003 (Class B)
VCCI (Class B)
UL/cUL Listed
UL/IEC/EN 62368-1, 60950-22
IEC/EN 62471

KC

RCM
EAC
BIS
NOM
Environmental Modes comply with the following:
IEC/EN 62262 Impact (IK10)

IEC/EN 60529 to the following: Ingress for Water and Dust (IP66)
Technical Specifications
Camera Features
Item Description
Image Sensor 1/2.9" Progressive CMOS (IBV229-1ER); 1/2.7" Progressive CMOS
(IBV529-1ER)
Maximum Resolution 1920x1080 (2MP) (IBV229-1ER); 2560x1920 (5MP) (IBV529-1ER)
Lens Type Motorized, Vari-focal, Remote Focus
Focal Length f = 3.4 ~ 9.4 mm
Iris Type Fixed iris
Field of View IBV229-1ER
93° ~ 32° (Horizontal)
50° ~ 18° (Vertical)
110° ~ 37° (Diagonal)
IBV529-1ER
30° ~ 88° (Horizontal)
23° ~ 65° (Vertical)
38° ~ 115°(Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
Wide Dynamic Range Up to 120 dB. 100dB per IEC62676-5
Day/Night Yes with removable IR cut filter
IR Illumination Built-in IR illuminators, effective up to 30 meters with Adaptive IR
technology
Minimum Illumination 0.07 lux Color (IBV229-1ER); 0.2 lux Color (IBV529-1ER)
Tilt Range 90°
Rotation Range 180°
Pan/Tilt/Zoom Functionalities Digital PTZ: 48x digital zoom
Storage Seamless Recording to MicroSD/SDHC/SDXC card (256 GB tested) and
recording to network-attached storage (NAS)
Built-in Installation Aids Focus and Zoom can be configured by the web client.
