Brand: Daheng
Model:MER-131-75GM-P

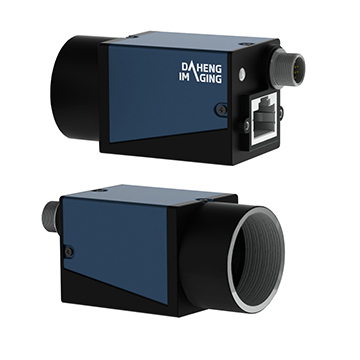

MER-131-75GM-P NIR Ultra-small GigE-PoE industrial digital camera
The MERCURY GigE PoE series (MER-G-P) camera is DAHENG IMAGING's mature area scan industrial digital camera, featuring megapixel resolution, high definition, extremely low noise and compact design.
The MER-131-75GM-P NIR camera is a NIR enhanced GigE Vision camera with the Onsemi PYTHON 1300 CMOS sensor, the sensor has optimized response in the near-infrared band. Thanks to the extremely compact (38.3mm×29mm×29mm), robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments.
The MER-131-75GM-P NIR camera is powered over Ethernet and has opto-isolated I/Os. The GPIOs give MER-G-P maximum flexibility to adapt to specific needs. The camera has an outstanding price/performance ratio.
The MERCURY family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.
Features
Power over Ethernet (IEEE802.3af compliant)
10-bit or 8-bit Mono output
Programmable ROI, increased frame rate with partial scan
Gain and exposure programmable
Three acquisition controls: Continuous acquisition/Software trigger acquisition/External trigger acquisition
Support ExposureEnd Event nofication
Flash sync for firing external lights at precisely the moment when exposure is performed
Adjustable packet-size and packet-delay, and reserved bandwidth
Programmable LUTs and storable user sets
Robust full metal housing and optional lockable devices
Compatible with GenICam? and GigE Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
Optimized software package for lower CPU loads in host running 32/64bit Windows, and support Linux, ARMv7, ARMv8, etc.
Multiple samples and easy-to-integrate SDKs for various programming tools
Regulations: CE, RoHS, FCC, GenICam, GigE Vision, IEEE802.3af (PoE)
|
Specifications |
MER-131-75GM-P NIR |
|
Resolution |
1280(H)×1024(V) |
|
Frame Rate |
75fps@ 1280 × 1024 |
|
Sensor Type |
1/2" Onsemi PYTHON 1300 global shutter CMOS |
|
Pixel Size |
4.8μm × 4.8μm |
|
Spectrum |
Mono, NIR |
|
Pixel Data Formats |
Mono8/Mono10 |
|
Data Interface |
Fast Ethernet(100Mbit/s) or Gigabit Ethernet(1000Mbit/s) |
|
Power Consumption |
<3W@12V DC, <3.75W@PoE |
|
Lens Mount |
C Mount |
|
Dimensions (L×W×H) |
38.3mm ×29mm ×29mm (without lens adapter or connectors) |
|
Operating Temp. |
0℃~45℃ |
|
Operating Humidity |
10% ~80% |
|
Weight |
75g |
|
Regulations |
RoHS, CE, FCC, GigE Vision, GenICam, IEEE802.3af |
