Brand:Honeywell
Model:HVCB-2200I
Lens 2.8/3.6/6.0/8.0mm Lens optional

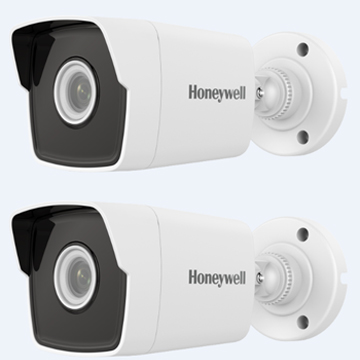

HVCB-2200I Honeywell IR Bullet Network Camera
Honeywell HVCB 2200I HD IR Bullet Network Camera, combines world-class imaging and
camera technology with innovative IP network technology, providing 1080P ultra high
quality image for customers. HVCB- 2200I HD IR Bullet Network Camera with its highquality
image effect makes it become the ideal solution in advanced monitoring field.
HVCB 2200I supports PoE Ethernet (IEEE802.3af), can supply power through network
cable directly, help the user save the use of the power adapter, and effectively reduce
the installation cost. To increase installation flexibility of HVCB 2200I, the network
camera also supports DC12V power supply
Market Opportunity
Honeywell HVCB 2200I supports 1080P HD video, PoE Ethernet power supply and
ONVIF interface protocol, even though under the environment of limited bandwidth it
still can present ultra-high quality images. Bullet camera appearance design makes it
become the ideal choice for all kinds of security, monitoring applications, widely used
in all kinds of spaces, such as roads, airports, schools, marketplace, hotels, banking
outlets, enterprises and organs, retail stores, building corridor, etc.
FEATURE
1/2.8” CMOS
Up to 1080P (1920×1080 @ 25fps)resolution
H.265+/H.265/H.264 encoding
Support 3D DNR, support DWDR
ICR automatic switch, realize true D/N monitoring
50m IR distance
2.8/3.6/6.0/8.0mm lens optional
Support Motion Detection and Privacy Mask
IP67 Protection grade
Onvif Compliant
PoE/ DC12V power supply
SPECIFICATION
Model HVCB 2200I
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination B/W: 0Lux（IR ON）; Color: 0.01Lux
IR Distance 50m
Electronic Shutter 1/3~1/100,000 s
Day/Night TDN (IR cut removable)
Lens 2.8/3.6/6.0/8.0mm Lens optional
FOV 2.8mm: Horizontal FOV 103° , Vertical FOV 59° ;6.0mm: Horizontal FOV 54° , Vertical FOV 30° ;3.6mm: Horizontal FOV 86° ,
Vertical FOV 46° ; 8.0mm: Horizontal FOV 40° , Vertical FOV 22°
Output Format PAL/NTSC Adjustable
WDR DWDR
3DNR 3D DNR, BLC
AUDIO/VIDEO COMPRESSION
Video Compression H.265+/ H.265/ H.264
Encoding Feature
Main Stream: 1920 × 1080@25fps/50Hz; 1920 × 1080@30fps/60Hz
Sub Stream: 640 × 480@25fps/50Hz; 640 × 480@30fps/60Hz
H.265 Encoding Main Profile
H.264 Encoding Baseline Profile / Main Profile / High Profile
Max.Resolution 1920X11080
Video Bit Rate Constant bit rate, Variable bit rate（32Kbps ~ 8Mbps）
ROI Support 1 ROI (Region of Interest)
NETWORK FUNCTION
Network Protocol
HTTPS, HTTP, TCP/IP, UDP, FTP, ICMP, IGMP, RTP, RTSP, RTCP, DHCP, DNS, DDNS, PPPoE, NTP, UPnP, SMTP, SNMP, 802.1x,
Bonjour, IPv4/v6, QoS
Access Protocol ONVIF (Profile S, G)
Browser Support IE8 or above
Video Preview Meanwhile 6
User Permission User Add / Modify/ Delete, permission management
Safe Mode Authorized user name and password, HTTPS encryption, AES link encryption
Motion Detection Set detection area, Multi-level sensitivity optional
Tampering Alarm Support
Privacy Mask Support
Device Exception Support network disconnected, IP conflict, illegal access alarm
OSD Title, time and date overlay, multi-line OSD, OSD color optional
Snapshot Function Support snapshot, snapshot resolution is encoding resolution
System Upgrade Support online remote upgrade
INTERFACE
Network Interface RJ45 10M/100M Network Adaptive
GENERAL
Operation Temperature 30° C ~ 50° C
Operation Humidity 95%
Protection grade IP67
Power Supply DC12V /PoE
PoE Support
Power Consumption（Max.） 7W

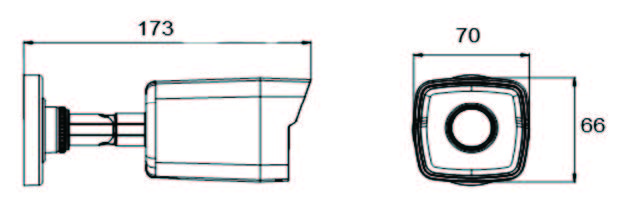

Dimensions(mm) Φ 70 × 173 mm
Weight/PCS(g) 0.27kg
*Note: Honeywell reserves the right, without notification to make changes / upgrade in product design and/or specifications.
HVCB- 2200I
1080P IR Bullet Network Camera, 1/2.8" CMOS, 2.8/3.6/6.0/8.0mm HD lens optional, 50m IR leds, H.265+/H.265/H.264 High
compression, true D/N switch, DWDR, video tampering alarm, ONVIF,IP67, DC12V/PoE
