Brand：AXIS
Model：AXIS P3267-LVE

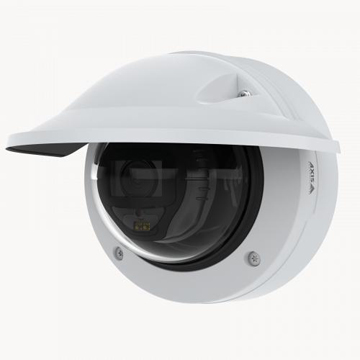

AXIS P3267-LVE 02330-001 Dome Camera
5 MP outdoor dome with IR and deep learning
Featuring Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS P3267-LVE delivers excellent image quality under any
light conditions. Based on the latest Axis system-on-chip (SoC), it includes a deep learning processing unit enabling
advanced features and powerful analytics based on deep learning on the edge. With AXIS Object Analytics preinstalled,
it offers highly nuanced object classification and enables fast VMS search. Featuring audio and I/O connectivity, you can
integrate equipment for instance a microphone to extend the value of your system. Furthermore, this robust, IK10-rated
outdoor-ready camera includes built-in cybersecurity such as Axis Edge Vault to help prevent unauthorized access and
safeguard your system.
> Excellent image quality in 5 MP
> Lightfinder 2.0, Forensic WDR, and OptimizedIR
> Analytics with deep learning
> Audio and I/O connectivity
> Built-in cybersecurity features
Camera
Image sensor 1/2.7” progressive scan RGB CMOS
Lens Varifocal, 3–8 mm, F1.3
Horizontal field of view: 104°–40°
Vertical field of view: 74°–29°
Minimum focus distance: 1 m (3.28 ft)
IR corrected, remote zoom and focus, P-Iris control
Day and night Automatically removable infrared-cut filter
Minimum
illumination
With Forensic WDR and Lightfinder 2.0:
Color: 0.13 lux at 50 IRE, F1.3
B/W: 0 lux at 50 IRE, F1.3
Shutter speed 1/33500 s to 1/5 s
Camera angle
adjustment
Pan ±190°, tilt -10 to +80°, rotation ±190°
System on chip (SoC)
Model ARTPEC-8
Memory 2048 MB RAM, 8192 MB Flash
Compute
capabilities
Deep learning processing unit (DLPU)
Video
compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG
Resolution 2592x1944 to 160x90
Frame rate 25/30 fps with power line frequency 50/60 Hz
Video streaming Multiple, individually configurable streams in H.264, H.265, and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Video streaming indicator
Multi-view
streaming
Up to 2 individually cropped out view areas in full frame rate
Image settings Saturation, contrast, brightness, sharpness, Forensic WDR: up to
120 dB depending on scene, white balance, day/night threshold,
local contrast, tone mapping, exposure mode, exposure zones,
defogging, barrel distortion correction, compression, rotation: 0°,
90°, 180°, 270° including Corridor Format, mirroring, dynamic
text and image overlay, privacy masks, polygon privacy mask
Pan/Tilt/Zoom Digital PTZ, preset positions
Audio
Audio streaming Audio in, simplex, two-way audio via edge-to-edge technology
Audio encoding 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz,
G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
Configurable bit rate
Audio
input/output
External microphone input, line input, digital input with ring
power, automatic gain control, network speaker pairing
Network
Security Password protection, IP address filtering, HTTPSa
encryption,
IEEE 802.1x (EAP-TLS)
network access control, digest
authentication, user access log, centralized certificate
management, brute force delay protection, signed firmware,
secure boot
signed video, Axis Edge Vault, Axis device ID, secure keystore
(CC EAL4 certified)
Supported
protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa
, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS
(Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS,
NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6,
ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local
address (ZeroConf)
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and
ONVIF® Profile T, specification at onvif.org
Support for Session Initiation Protocol (SIP) for integration with
Voice over IP (VoIP) systems, peer to peer or integrated with
SIP/PBX.
Onscreen
controls
Day/night shift
Defogging
Wide dynamic range
Video streaming indicator
IR illumination
Event conditions Analytics, external input, supervised external input, virtual inputs
through API
Call: state, state change
Device status: above operating temperature, above or below
operating temperature, below operating temperature, within
operating temperature, IP address removed, new IP address,
network lost, system ready, ring power overcurrent protection,
live stream active, casing open
Digital audio: digital signal contains Axis metadata, digital signal
has invalid sample rate, digital signal missing, digital signal okay
Edge storage: recording ongoing, storage disruption, storage
health issues detected
I/O: digital input, manual trigger, virtual input
MQTT: subcribe
Scheduled and recurring: schedule
Video: average bitrate degradation, day-night mode, live stream
open, tampering
Event actions Overlay text, external output activation, zoom preset, day/night
mode, flash status LED, use lights, set defog mode, set WDR mode
Calls: end SIP call, make SIP call, answer call
I/O: toggle I/O once, toggle I/O while the rule is active
MQTT: publish
Notification: email, HTTP, HTTPS, TCP, and SNMP trap
Pre- and post-alarm video or image buffering for recording or
upload
Record video: SD card and network share
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
share, and email
Data streaming Event data
Built-in
installation aids
Remote zoom and focus, straighten image, pixel counter, level
grid
Analytics
AXIS Object
Analytics
Object classes: humans, vehicles (types: cars, buses, trucks,
bikes)
Trigger conditions: line crossing, object in area
Up to 10 scenarios
Metadata visualized with color-coded bounding boxes
Polygon include/exclude areas
Perspective configuration
ONVIF Motion Alarm event
Applications Included
AXIS Object Analytics
AXIS Video Motion Detection, active tampering alarm, audio
detection
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
General
Casing IP66-, NEMA 4X- and IK10-rated
Polycarbonate hard coated dome
Polycarbonate casing and weathershield
Color: white NCS S 1002-B
For repainting instructions, go to the product’s support
page. For information about the impact on warranty, go to
axis.com/warranty-implication-when-repainting.
Mounting Mounting bracket with junction box holes (double-gang,
single-gang, and 4” octagon) and for wall or ceiling mount
Sustainability PVC free, BFR/CFR free
6.5% bioplastics
Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Typical 6.4 W, max 12.1 W
Connectors RJ45 10BASE-T/100BASE-TX PoE
I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised
digital input and 1 digital output (12 V DC output, max. load
25 mA)
Audio: 3.5 mm mic/line in
IR illumination OptimizedIR with power-efficient, long-life 850 nm IR LEDs
Range of reach 40 m (130 ft) or more depending on the scene
Storage Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit)
Recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating
conditions
-40 °C to 50 °C (-40 °F to 122 °F)
Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C
(165 °F)
Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F)
Humidity 10–100% RH (condensing)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5–95% RH (non-condensing)
Approvals EMC
EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2,
EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4,
KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A,
VCCI Class A
Safety
CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3,
IEC/EN 62471, IS 13252
Environment
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78
IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X,
NEMA TS2 (2.2.7-2.2.9)
Network
NIST SP500-267
Dimensions Without weathershield:
Height: 107 mm (4.21 in)
? 149 mm (5.87 in)
Weight With weathershield:
900 g (2.0 lb)
Included
accessories
Installation guide, Windows®
decoder 1-user license, drill
template, RESISTORX® T20 screw bit, terminal block connectors,
cable gaskets, connector guard, weathershield
Optional
accessories
AXIS TP3201-E Recessed Mount, AXIS TP3103-E Pendant Kit,
AXIS T8355 Digital Microphone 3.5 mm, AXIS ACI Conduit
Adapters, smoked dome, black casing
For more accessories, see axis.com
Video
management
software
AXIS Companion, AXIS Camera Station, video management
software from Axis Application Development Partners available
at axis.com/vms
Languages English, German, French, Spanish, Italian, Russian, Simplified
Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese
