Brand:SONY
Model:SNC-XM637

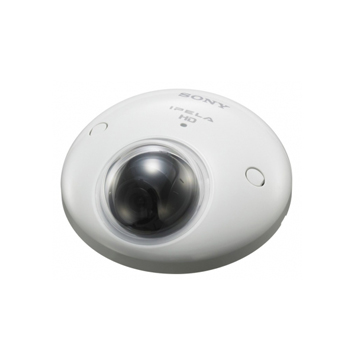

SNC-XM637 SONY Mini Dome IP Camera
Specifications
Camera
Image Sensor1/2.9-type progressive scan Exmor CMOS sensor
Number of Effective PixelsApprox. 2.14 Megapixels
Minimum Illumination (50 IRE)Color: 0.3 lx (F2.0, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
B/W: 0.3 lx (F2.0, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Minimum Illumination (30 IRE)Color: 0.18 lx (F2.0, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.18 lx (F2.0, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Dynamic RangeEquivalent to 90 dB with View-DR technology
GainAuto
Shutter Speed1/1 s to 1/10,000 s
Exposure ControlExposure compensation, Shutter speed
White BalanceATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual
LensFixed lens
Zoom RatioDigital zoom 4x
Total zoom 4x
Horizontal Viewing Angle113°
Vertical Viewing Angle61°
Viewing Tilt Angle151°
Focal Lengthf = 2.8 mm
F-NumberF2.0
Pan/Tilt/Rotation Angle (manual)±30 ° 0 ° to +90 ° -175 ° to +175 °
Camera Features
Day/NightElectronic D/N
e-FlipYes
Image rotate90°, 270°
MirroringYes
Wide-DView-DR
Tone CorrectionVisibility Enhancer
Noise ReductionXDNR
Image StabilizerElectronic
Picture ModeYes
Privacy Masking (number)20
Privacy Masking (shape)Quadrangle formed by any four corner points
Privacy Masking (color/effect)Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic
Edge StorageYes
Compatibility with Cloud ServiceYes
Vandal ResistantIK10
Ingress ProtectionIP66
Superimpose Number3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for a logo mark
Superimpose LanguageEnglish
Menu LanguageEnglish, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai
Smartphone viewer Yes
Video
Resolution1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG)
Compression FormatH.264 (High/Main/Baseline Profile), JPEG
Maximum Frame RateH.264: 30 fps (1920 x 1080)
JPEG: 30 fps (1920 x 1080)
Bitrate Control ModeCBR/VBR (selectable)
Range of Bit Rate Setting64 Kbps to 32 Mbps
Solid PTZYes
Adaptive Rate ControlH.264
Bandwidth ControlJPEG
Multi streaming CapabilityYes (3)
Number of Clients20
Intelligent Video/Audio Analytics
Analytics ArchitectureDEPA Advanced
Intelligent Motion DetectionYes
Face DetectionYes
Tamper AlarmYes
Scene AnalyticsPassing, Intrusion, Left Object Detection, Removed Object Detection
Audio
Compression FormatG.711/G.726/AAC (16 kHz, 48 kHz)
System Requirements
Operating SystemWindows XP (32 bit) Professional Edition
Windows Vista (32 bit) Ultimate, Business Edition
Windows 7 (32/64 bit) Ultimate, Professional Edition
Windows 8 Pro (32/64 bit)
Windows 8.1 Pro (32/64 bit)
ProcessorIntel Corei7 2.8 GHz or higher
Memory2 GB or more
Web BrowserMicrosoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver. 10.0, Ver. 11.0
Firefox Ver. 19.02 (plug-in free viewer only)
Safari Ver. 5.1 (plug-in free viewer only)
Google Chrome Ver. 25.0 (plug-in free viewer only)
SNC toolboxYes
SNC toolbox mobileYes
Network
ProtocolsIPv4, TCP, UDP, ARP, ICMP, IGMP*, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, FTP (client), SNMP (v1, v2c, v3), SSL
*SSM (Source Specific Multicast) is supported.
Number of IP Address/Mac ADDRESS1
QoSDSCP
Multicast Streaming SupportYes
ONVIF ConformanceProfile S, Profile T
AuthenticationIEEE802.1X
Interface
Microphone InputBuilt-in microphone
Network Port10BASE-T/100BASE-TX (M12)
Card SlotsSD x 1
Confirmed SD Card TypeSDHC (no support for SDXC)
General
Power RequirementsIEEE 802.3af compliant (PoE system)
Power Consumption10 W (heater enabled) 3.8 W (heater disabled, equivalent to PoE CLASS 1)
Operating Temperature-25 °C to +50 °C -13°F to +122°F
Cold Start Temperature-20 °C -4°F
Storage Temperature-30 °C to + 60 °C -22 °F to + 140 °F
Operating Humidity20 % to 80 %
Storage Humidity20 % to 80 %
Built-in HeaterYes
Heater Working Temperature0 °C or less 32 °F or less
Dimensions *1φ114 mm x 47 mm4 1/2 inches x 1 7/8 inches
MassApprox. 275 g
Approx. 9.7 oz
External MaterialTop cover/Dome cover : PC (Polycarbonate)
External ColorTop cover: Munsell 4.4BG 8.4/0.2
Fire RetardantUL2044
Safety RegulationsJATE Technical standard (LAN)
UL2044, UL50, IEC60950-1 (CB),IEC60529, IEC62262
VCCI Class B, FCC Class B, IC Class B,
Emission: EN55022 (Class B) + EN50130-4
Immunity: EN55022 (Class B) + EN55024,
Emission: AS/NZS CISPR22 (Class B)
EAC (GOST-R)
Supplied AccessoriesCD-ROM (supplied programs) (1)
Installation Manual (1)
Template (1)
Safety regulations (1)
Warranty booklet (1)
Lens adjusting tool (1)
Wrench (1)
Notes
*1The values for dimensions are approximate.
