Brand:Honeywell
Model:HISD-2301WE

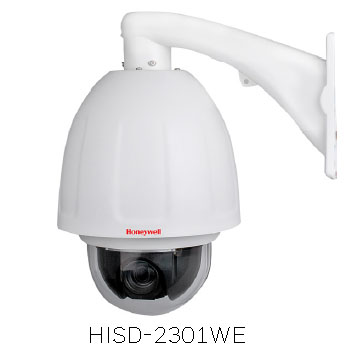

Honeywell HISD-2301WE and HISD-2301WEIR speed domes combine world-class imaging and advanced IP camera technology, providing
streaming images in 1080P at full frame rate. With an IK10 vandal-proof housing (HISD-2301WE) and IP66, these speed domes are ideal for
advanced surveillance monitoring indoor or outdoor.
Featuring 360° continuous rotation, 30x zoom and auto-focus lens,the HISD 2301 series speed domes deliver a full picture of the area
under surveillance in optimal width and depth. True Day/Night (TDN) and Wide Dynamic Range (WDR) are ideal for areas where there is high
illumination contrast between background and foreground. In addition to this, the speed domes possess backlight compensation which is ideal for entrances or windows.
The HISD-2301WE is equipped with IR LEDs which can beam up to 100m from the camera to provide useable black and white videos. The speed dome is ideal for monitoring areas with low illumination or
complete darkness. The IR beam angle can be adjusted to ensure best IR performance.
FEATURES
● 1080P high resolution at full frame rate
● Built in 30X optics zoom lens
● Pan: 360° continuous rotation; Tilt: 0° - 90° rotation; 256 presets, no blind spot
● True Day/Night with IR-cut filter, WDR
● H.264 High Profile / MJPEG encoding, VBR/CBR, dual stream
● Motion detection, network fail detection and process
● Edge Storage 32G
● IR beam distance up to 120m with high-powered IR array (HISD-2301WEIR)
● Alarm linkage output, SD card video recording, snapshot, FTP upload, Email inform, Link preset, CMS inform
● ONVIF Profile S
● 2 alarm input and 1 output, SD card support,RS485, audio input and output, analog ideo output
● IP66, IK10 vandal-proof (HISD-2301WE)
SPECIFICATIONS
Model HISD-2301WE
Image Sensor 1/2.8" Progressive CMOS
Optical Zoom 30X
Effective Pixels 1920X1080
Min. Illumination
Color: 0.1 lux, F1.6 (AGC ON)
BW: 0.01 lux, F1.6 (AGC ON)
S/N Ratio >50dB
Focal length f=4.5~135mm
Angle Field of view 67.8° (Wide) / 2.77° (Tele)
Focus mode Auto / Manual
White Balance Auto/ ATW / indoor / outdoor
Iris Control Auto / Manual
Electronic Shutter Auto / Manual / anti-flicker, 1/1 - 1/10000s
AGC Control LOW / MIDDLE / HIGH
Backlight Compensation CLOSE / OPEN
Digital Slow Shutter CLOSE / OPEN
Motion Detection OFF / ON (programmable zones)
Wide Dynamic Range ON / OFF
Day/Night B/W, Color, Auto
Image Inverse OFF / VMirror / HMirror /180° Flip
Noise Reduction LOW / MIDDLE / HIGH / OFF
Operation
Pan 360° endless
Tilt 0 90°
Manual speed 0.1° - 300° /s
Presets 256
Accuracy 0.1°
Preset Speed 300° /s
Swing 8
Continuous Support
Cruise 8
Track 4
Proportional Pan tilt AUTO
Home Function Preset / Swing / Cruise / Track
Auto Flip Mechanical
Resume after Power loss Support
IR Beam Distance ---
IR Angle ---
IP Video
Resolution 1920 x 1080 @ 25/30fps
Video Compression H.264 High Profile / MJPEG dual stream
Encoding Control CBR/VBR
Video Output 1.0Vp-p/75Ω, PAL/ NTSC/ BNC
Motion Detection 1 zones (Sensitivity value selectable)
Network Protocols
IPv4, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, UPNP,
RTSP, RTP, RTCP, PPPoE, ICMP, SNMP
ORDERING
HISD 2301WE 1080P IP PTZ, 30X, H.264 High-profile, TDN, WDR, wall mounting bracket, Edge storage 32G, ONVIF Profile S, PoE,
IP66, Vandal-proof IK10, AC24V
HISD 2301WE IR 1080P IP PTZ, 100m IR distance, 30X, H.264 High-profile, TDN, WDR, wall mounting bracket, Edge storage 32G,
ONVIF Profile S, PoE, IP66, DC12V
HSDFM3 Flush mounting bracket
HSDHM3 Ceiling mounting bracket
