Brand:AXIS
Model:AXIS Q6010-E
Lens Focal length 2.8 mm
Horizontal field of view 360 °
Vertical field of view 84 °

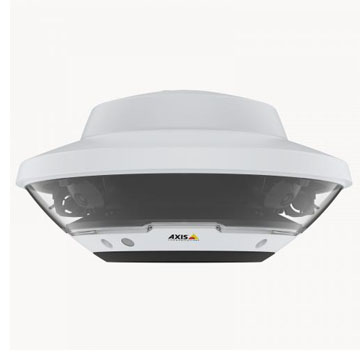

AXIS Q6010-E Network Camera
For 360° real-time monitoring and great detail
360° camera with one-click PTZ control
4 x 5 MP sensors, total 20 MP resolution
Exchangeable and tiltable lenses
Requires an AXIS Q60-E PTZ Network Camera
Autopilot included
AXIS Q6010-E Network Camera is a multidirectional camera designed for operation with any AXIS Q60-E PTZ Network Camera. Together they deliver 360° overview for total situational awareness and great details. It's ideal for active city surveillance, for instance at street crossings or squares.
Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6010-E is specially designed for operation with any AXIS Q60-E PTZ Network Camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. Additionally, this camera offers autopilot for automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q60-E PTZ Network Camera will automatically track the object within the viewing area.
AXIS Q6010-E features four 5 MP sensors and delivers a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265, significantly lowers bandwidth and storage requirements without compromising image quality.
Using the same bracket, power supply and network cable as the connected AXIS Q60-E PTZ Net-work Camera, there's no extra equipment required for AXIS Q6010-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details from one camera unit.
Technical specifications
Models: AXIS Q6010-E 50 Hz / AXIS Q6010-E 60 Hz
Camera
Image sensor CMOS
Image sensor size 1/2.5
Sensor size in megapixel 20.4
Lightfinder -
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.40 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
General
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -50 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Designed for repaint Yes
Analytics
Autotracking version –
Orientation aid –
Video
Max video resolution 2592x1944
Max frames per second 20
Day and Night functionality Yes
Electronic image stabilization –
Lens
Focal length 2.8 mm
Horizontal field of view 360 °
Vertical field of view 84 °
Pan, Tilt, Zoom
Pan range –
Tilt range –
Guard tour –
Optical zoom -
Digital zoom –
Compression
Zipstream Yes
H.264 High, Main
H.265 Yes
Motion JPEG –
Audio
Audio Support –
Built-in microphone –
System Integration
Audio detection –
Active tampering Yes
Alarm inputs/outputs –
Network
PoE Class High PoE
Security
Signed firmware Yes
Secure boot –
TPM –
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q6010-E 60 Hz BR, JP, KR, US 01981-001
AXIS Q6010-E 50 Hz AR, AU, CN, EU, UK 01980-001
