Brand:AXIS
Model:AXIS M3068-P
Lens Focal length 1.65 mm
Horizontal field of view 185 °
Vertical field of view 185 °

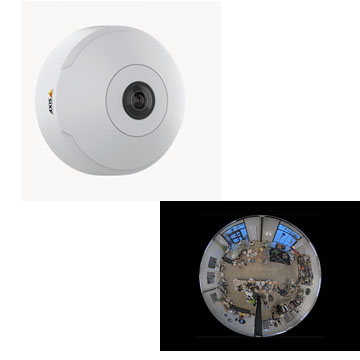

AXIS M3068-P Network Camera
12 MP mini dome with 360° panoramic view
360° panoramic overview
Forensic WDR, day/night functionality
Small and discreet design
Zipstream supporting H.264 and H.265
Environmentally friendly materials
Are you looking for an attractively priced fixed mini-dome that delivers clear 360° panoramic overviews with no blind spots? From retail stores to offices, AXIS M3068-P is ideal wherever high-quality indoor video surveillance is required.
See it all – day and night
Featuring Forensic WDR, AXIS M3068-P delivers clarity when there’s both dark and light areas in the scene and outstanding 360° panoramic views at up to 15 fps. Plus, day/night functionality provides high quality black and white video with improved sensitivity in poor light. In smaller facilities it’s possible to monitor the entire area with just one camera. Not only does the camera give you a complete and sharp overview, but it also allows you to zoom in and analyze live or recorded video footage. Whether an incident occurred in the middle of the space, or in a far corner, thanks to de-warping functionality you can always see distortion-free views of the specific area. AXIS M3068-P can deliver a variety of de-warped views, and you can fetch multiple, individually configured video streams simultaneously from the camera.
AXIS M3067/68 Ip camera pendant mount in clothing store
Sleek, sustainable design
This ultra-compact, PVC-free camera is made from 71% recycled plastics and is designed to look discreet wherever it’s installed. It comes with a white casing that features a sleek, no-dome design. There’s also optional casings available, for instance a black casing, a smoke detector casing to help disguise the camera as well as a vandal-resistant casing for added security and peace of mind. Additionally, the camera’s casing can be repainted to blend in seamlessly with specific surroundings.
AXIS M3067 Ip Cameria panoramic view in store
Great value for money
This attractively priced fixed mini-dome helps ensure smooth installation and keeps costs low. It’s delivered factory-focused out of the box, so no focusing is required. And, thanks to digital roll functionality you can remotely adjust the rotation of the camera overview– no need to do it manually on the camera. Furthermore, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality.
Technical specifications
Models: AXIS M3068-P
Camera
Image sensor CMOS
Image sensor size 1/1.7
Sensor size in megapixel 12.0
Lightfinder -
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.32 lux
Min illumination/ light sensitivity (B/W) 0.06 lux
Video
Max video resolution 2880x2880
Max frames per second 25/30
Day and Night functionality
Yes
Electronic image stabilization –
Lens
Focal length 1.65 mm
Horizontal field of view 185 °
Vertical field of view 185 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265
Yes
Motion JPEG
Yes
Audio
Audio Support –
Built-in microphone –
Network
PoE Class 2
Wireless –
Security
Signed firmware
Yes
Secure boot
Yes
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature 0 to 40 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint
Yes
Sustainability BFR/CFR free, PVC free
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS M3068-P AR, AU, BR, CN, EU, JP, KR, UK 01732-001
AXIS M3068-P US 01732-004
