Brand:AXIS
Model:AXIS M3116-LVE
Lens Focal length 2.4 mm
Horizontal field of view 130 °
Vertical field of view 72 °

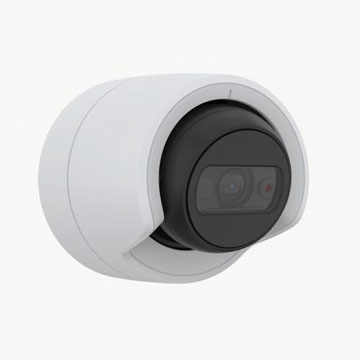

AXIS M3116-LVE Network Camera
Affordable flat-faced 4 MP dome with IR
4 MP video quality
Forensic WDR, Lightfinder and IR illumination
Zipstream supporting H.264 and H.265
Signed firmware and secure boot
Flat-faced design suppressing light reflections
AXIS M3116-LVE is an affordable, flat-faced dome that offers 4 MP video and an excellent wide-angle view. This compact and discreet camera includes IR illumination for sharp video even in challenging light or complete darkness. It’s ideal for surveillance in a wide range of locations, including hotels, restaurants, retail stores, and offices.
Interior café environment
Smooth, sharp video
AXIS M3116-LVE offers excellent 4 MP resolution at up to 30 fps to deliver clear, sharp video of moving objects. It features Axis Forensic WDR which preserves forensic detail when there are both light and dark areas in a scene. And Axis Lightfinder technology for increased light sensitivity and clear colors in low light. It’s perfect for monitoring inside and outside of various premises where there’s often poor light conditions.
Light up the night
This flat-faced dome is designed to suppress light reflections and deliver excellent image quality and usability. It offers a wide-angle view of 130°, and with built-in IR illumination you’ll enjoy clear, reflection-free footage in low light or complete darkness and vibrant colors during the day. So, there’s no need for extra lighting- you get unobtrusive surveillance both day and night.
M31 mounted on brick wall outdoors
Fits in anywhere
AXIS M3116-LVE offers flexible and reliable installation. It’s suitable for both indoor and outdoor surveillance and can be mounted on walls or ceilings. Kits are also available for mounting on pendants or on junction boxes. And, with a 3-axis camera angle adjustment, this compact and discreet flat-faced dome can be easily leveled and directed. Furthermore, the impact-resistant, IK08-rated casing can be re-painted in any color to blend in with specific surroundings.
It offers enhanced security features to prevent unauthorized access and safeguard your system. And, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements. Furthermore, thanks to edge storage you can record directly to an onboard memory card, helping reduce installation and maintenance costs.
Technical specifications
Models: AXIS M3116-LVE
Camera
Image sensor CMOS
Image sensor size 1/2.7
Sensor size in megapixel 4.0
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.19 lux
Min illumination/ light sensitivity (B/W) 0.04 lux
Video
Max video resolution 2688x1512
Max frames per second 25/30
Day and Night functionality
Yes
Electronic image stabilization –
Lens
Focal length 2.4 mm
Horizontal field of view 130 °
Vertical field of view 72 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265
Yes
Motion JPEG
Yes
Audio
Audio Support –
Built-in microphone –
Network
PoE Class 3
Wireless –
Security
Signed firmware
Yes
Secure boot
Yes
General
Remote focus –
Remote zoom –
Built-in IR
Yes
Local storage (memory card slot)
Yes
Operating temperature -30 to 50 °C
Outdoor Ready
Yes
Vandal rating IK08
IP rating IP67
Designed for repaint
Yes
Sustainability PVC free
Part number for ordering
AXIS M3116-LVE AR, AU, BR, CN, EU, JP, KR, UK, US 01605-001
AXIS M3116-LVE IN 01605-113
