Brand:AXIS
Model:AXIS P3245-LVE-3
Lens Focal length 3.4 - 8.9 mm
Horizontal field of view 100-36 °
Vertical field of view 53-20 °

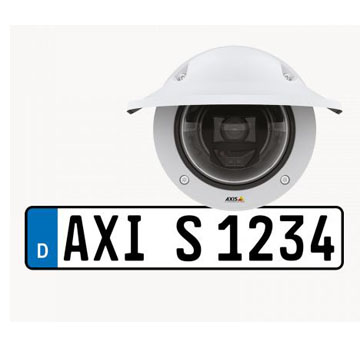

AXIS P3245-LVE-3 License Plate Verifier Kit
Easy, cost-effective vehicle access control
All-in-one vehicle access control
Support for allow and blocklist
Vandal- and weather-resistant
Built-in support for Axis network door controllers
OptimizedIR for recognition in darkness
From basic entry/exit to advanced access control, AXIS P3245-LVE-3 supports different levels of security. Ideal for controlled areas such as parking lots, office parking, or garages it offers cost-effective license plate reading in all environments — day and night.
Easy and cost-effective
Ideal for automated vehicle access control, AXIS P3245-LVE-3 consists of an Axis dome camera and preinstalled AXIS License Plate Verifier analytics. This easy-to-install, all-in-one camera kit captures license plates and verifies them against the allow and blocklist stored in the camera to determine if a vehicle can enter a controlled area. So, you can eliminate people-hours to man gates, and free up resources for other tasks. And, because all the processing and storage takes place in the camera, there’s no need for expensive servers and bandwidth requirements are reduced.
AXIS P3245-LVE-3 License Plate Verifier Kit, mounted on a wall in a carpark entrance. Yellow car in the background.
Automated license plate reading — day and night
AXIS P3245-LVE-3 delivers sharp images for license plate reading in all environments — day and night. This vandal-resistant, IK10-rated camera is safe to use even when installed at lower, more accessible heights. Featuring shock detection, it will send an alarm when it’s been hit. This camera delivers HDTV 1080p resolution and include Axis image enhancement technologies as well as OptimizedIR to ensure the ideal image settings for license plate reading — 24/7.
Schematic illustration over AXIS P3245-LVE-3 License Plate Verifier Kit together with access control and video management software
Flexible solution
This flexible, all-in-one camera kit supports different levels of security - from basic entry/exit to advanced access control. It offers built-in support for AXIS A1001 and AXIS A1601 Network Door Controller allowing you to integrate with credential management systems and install a card reader as backup. It offers easy integration with your video management software (VMS). And, the application’s open API (application programming interface) lets you add tailor-made applications for more complex requirements.
Technical specifications
Models: AXIS P3245-LVE-3
Camera
Image sensor CMOS
Image sensor size 1/2.8
Sensor size in megapixel 2.0
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality
Yes
Electronic image stabilization –
Lens
Focal length 3.4 - 8.9 mm
Horizontal field of view 100-36 °
Vertical field of view 53-20 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265
Yes
Motion JPEG
Yes
Audio
Audio Support
Yes
Built-in microphone –
Network
PoE Class 3
Wireless –
Security
Signed firmware
Yes
Secure boot
Yes
General
Remote focus
Yes
Remote zoom
Yes
Built-in IR
Yes
Local storage (memory card slot)
Yes
Operating temperature -40 to 50 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint
Yes
Sustainability PVC free
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS P3245-LVE-3 AU, EU, UK, US 02234-001
