Brand:Phenix
Model:12FA1224-25MP

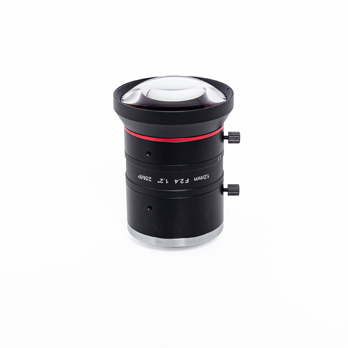

12FA1224-25MP Phenix Low-distortion Industrial Lens
Compatible with the latest 1.2" camera
Backward compatible with 1" and 1.1" camera
25MP ultra high resolution perfectly fits the requirement of high-end machine vision
|
型號 Model |
12FA1224-25MP |
12FA1624-25MP |
12FA2524-25MP |
12FA3524-25MP |
12FA5024-25MP |
|
|
焦距(mm) Focal Length |
12mm |
16mm |
25mm |
35mm |
50mm |
|
|
像面尺寸(φ) Image Size |
φ19.3 |
φ19.3 |
φ19.3 |
φ19.3 |
φ19.3 |
|
|
像素尺寸(μm) Pixel Size |
2.74μm |
2.74μm |
2.74μm |
2.74μm |
2.74μm |
|
|
光圈范圍(F數(shù)) F-Number |
F2.4-16 |
F2.4-16 |
F2.4-16 |
F2.4-16 |
F2.4-16 |
|
|
工作距離(mm) Working Distance |
100mm-∞ |
100mm-∞ |
150mm-∞ |
150mm-∞ |
250mm-∞ |
|
|
控制 Control |
光圈 Iris |
手動 Manual |
手動 Manual |
手動 Manual |
手動 Manual |
手動 Manual |
|
聚焦 Focus |
手動 Manual |
手動 Manual |
手動 Manual |
手動 Manual |
手動 Manual |
|
|
最近物距視場范圍(mm) Minimum Object Distance FOV |
-149.68 x -129.48 |
-105.17 x -90.98 |
-88.89 x -76.71 |
-63.65 x -55.06 |
-74.71 x -64.63 |
|
|
視場角(°) Angle of View |
1.2" |
62.33x55.33x76.12 |
48.83x42.86x61.36 |
31.42x27.32x41.19 |
22.51x19.53x29.33 |
15.66x13.57x20.50 |
|
1.1" |
54.5x54.5x71.6 |
42.12x42.12x57.24 |
27.58x27.58x38.32 |
19.1x19.1x26.76 |
13.28x13.28x18.76 |
|
|
1.0" |
56.2x43.6x71.08 |
43.46x33.24x53.04 |
28.52x21.58x35.3 |
19.76x14.9x24.54 |
13.76x10.34x17.22 |
|
|
分辨率 Resolution |
25MP |
25MP |
25MP |
25MP |
25MP |
|
|
TV畸變 (最近物距至無窮遠最大畸變值) Max TV Distortion |
0.870 |
0.073 |
-0.106 |
-0.072 |
0.062 |
|
|
基準工作距離TV畸變 (200mm-400mm)% Optimal TV Distortion |
0.390 |
0.070 |
-0.040 |
0.015 |
0.011 |
|
|
接口 Mount |
C |
C |
C |
C |
C |
|
|
濾鏡尺寸(mm) Filter Size |
|
M40.5*0.5 |
M37*0.5 |
M40.5*0.5 |
M40.5*0.5 |
|
|
鏡頭尺寸(mm) Dimension |
φ50*66.96 |
φ42.5*59.76 |
φ40*58.44 |
φ42*59.32 |
φ42*61.16 |
|
|
重量(g) Weight |
218.5 |
189.5 |
161.7 |
174 |
179 |
|
|
溫度范圍(°) Operating Temperature |
-10~+50℃ |
-10~+50℃ |
-10~+50℃ |
-10~+50℃ |
-10~+50℃ |
|
