Brand：Pelco
Model：EVO-12NCD (12MP)
EVO-05NCD (5MP)

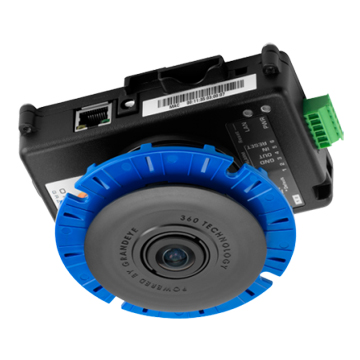

EVO-05NCD Pelco 360 Indoor Concealed Camera
5 MP sensor and no moving parts
? Constant 360° surveillance with no blind spots
? No moving parts, no maintenance and silent operation
? Up to 30 fps video stream at 1 MP and ? MP
? 0.2 lux minimum illumination and electronic WDR
? PoE or 12 VDC powered
? 3-years warranty
Advanced features
? Local SD card slot for event recording
? Configurable privacy regions
? Polygonal video motion detection regions
? Local alarm digital input and output
? Audio microphone input
A truly discreet installation
? Quick and easy installation
? Light weight enclosure that can be completely concealed
behind ceiling or wall voids
? Camera mount can be spray-painted to match your
environment
? Up to 25 mm (1 in.) ceiling / wall thickness
Extensive VMS / NVR platform integration
with Oncam SDK
? Market leading Oncam Grandeye 3D dewarping software
? Full live and retrospective dewarping available
? Camera features are accessible through VMS platforms
? Simultaneous multiple video streams
? 10x digital zoom capability through client-side dewarping
? H.264 / MJPEG streaming with multiple quality levels
? Optimizes bandwidth and storage utilization
? Intuitive web-based interface for viewing and configuration
? Supported by major VMS / NVR systems including
VideoXpert (version 1.6 or later) and
Digital Sentry (version 7.8.90 or later)
? ONVIF profile S conformant
Model EVO-05-NCD
General
Lens Field of View 180o Horizontal, 168o Vertical
Image Sensor 2592 H x 1944 V, 5 MP,
1/2.5-inch Sony CMOS Sensor
Lens 185° / F2.0
Minimum Illumination 0.2 lux = 50 IRE F/2.0 (6500 K)
Frame Rate 30 fps for 1 MP and ? MP resolution
15 fps for 2 MP resolution
10 fps for 4 MP full resolution
Video Motion Detection 8 configurable regions
External Input 1x contact input
External Output 1x contact output
Security Configurable password protection
Advanced Event Management Triggered by motion, external input or HTTP event, result configurable, external output,
FTP/SMTP upload and local recording
Networking TCP/IP, HTTP, DHCP, DNS, NTP, FTP, SMTP and RTSP
Privacy Regions 10 configurable privacy regions
SD Card Built-in SD card slot. Supports cards up to 128 GB capacity. Speed class 10 or higher required
Audio Connections Audio In through 3.5 mm jack, RTSP using G711 codec or ONVIF S
Analog Video Out Test port for production, not available in normal operation
White Balance Range Auto White Balance (Range = approximately 2500 K ~ 8000 K)
