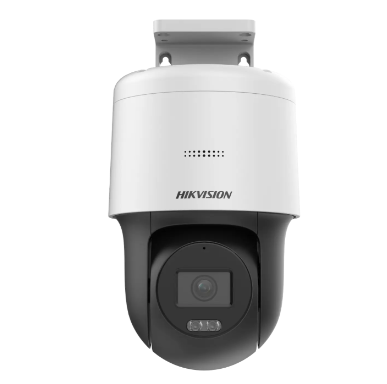

DS-2DE2C200MW-DE(F0)(S7)
DS-2DE2C200MW-DE(F1)(S7)
DS-2DE2C400MW-DE(F0)(S7)
DS-2DE2C400MW-DE(F1)(S7)
High quality imaging with 2 MP resolution
Clear imaging against strong back light due to DWDR technology
3D DNR technology delivers clean and sharp images
Hik-Connect cloud service and APP for remote management and views of devices
Built-in microphone for real-time audio security
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Water and dust resistant IP66

• Camera
• Image Sensor1/3″ Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.005 Lux @(F1.2，AGC ON), B/W: 0 Lux with IR

• Lens
• Focal Length2.8 mm/ 4 mm
• FOV

  2.8 mm, horizontal FOV 97°, vertical FOV 52.3°, diagonal FOV 114.3°

  4 mm, horizontal FOV 79°, vertical FOV 42.4°, diagonal FOV 93.3°

• ApertureF1.6

• Illuminator
• Supplement Light TypeIR & White Light
• Supplement Light Range

  White Light Distance: up to 30 m

  IR Distance: up to 30 m

• Smart Supplement LightYes
• IR Wavelength850 nm

• PTZ
• Movement Range (Pan)0° to 340°
• Movement Range (Tilt)-5° to 105°
• Pan SpeedPan speed: configurable from 4° to 21°/s
• Tilt SpeedTilt speed: configurable from 4° to 19°/s

• Video
• Video CompressionH.265, H.264, MJPEG
• H.264 TypeBaseline Profile, Main Profile, High Profile
• H.265 TypeMain Profile
• Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Bit Rate32 Kbps to 8 Mbps

• Audio
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
• Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)/16-64Kbps(AAC)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
• APIOpen Network Video Interface, ISAPI, SDK

• Image
• Image SettingsSaturation, brightness, contrast, sharpness
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-In MicrophoneYes
• Built-In SpeakerYes
• ResetYes

• Event
• Basic EventMotion detection
• Alarm LinkageUpload to FTP, notify surveillance center, send email, upload to memory card

• General
• Operating Condition

  With supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing)

  With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)

• General FunctionMirror, password protection, watermark
• Power

  12 VDC ± 25%, 0.75 A, max. 9 W, ?5.5 mm coaxial power plug, reverse polarity protection

  PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 10.8 W

• Dimensions

  Camera dimension: 162 mm × 120 mm × 234.2 mm (6.4" × 4.7\" × 9.2\")

  Package dimension: 205 mm × 167 mm × 289 mm (8.1 × 6.6\" × 11.4\")"

• Weight

  Camera weight: 700 g (1.5 lb.)

  With package weight: 1250 g (2.8 lb.)

• Approval
• EMC

  FCC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  IC (ICES-003: Issue 6, 2016)

• ProtectionIP66 (IEC 60529-2013)
