DS-2DE2C200SCG-E(F0)
DS-2DE2C200SCG-E(F1)
DS-2DE2C400SCG-E(F0)
DS-2DE2C400SCG-E(F1)

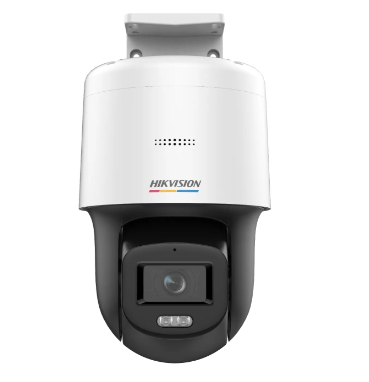

2-inch 2 MP ColorVu Mini PT Dome Network Camera
High quality imaging with 2 MP resolution
Clear imaging against strong back light due to DWDR technology
3D DNR technology delivers clean and sharp images
Hik-Connect cloud service and APP for remote management and views of devices
Built-in microphone and speaker for real-time audio security
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Water and dust resistant IP66

• Camera
• Image Sensor1/2.7" Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light

• Lens
• Focal Length2.8 mm/4 mm
• FOV

  2.8 mm, horizontal FOV 106.1°, vertical FOV 55.8°, diagonal FOV 126.5°

  4 mm, horizontal FOV 83.6°, vertical FOV 44.6°, diagonal FOV 99.1°

• ApertureF1.0

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeWhite Light Distance: up to 30 m
• Smart Supplement LightYes

• PTZ
• Movement Range (Pan)0° to 340°
• Movement Range (Tilt)-5° to 105°
• Pan SpeedPan speed: configurable from 4° to 21°/s
• Tilt SpeedTilt speed: configurable from 4° to 19°/s

• Video
• Video CompressionH.265, H.264, MJPEG
• H.264 TypeBaseline Profile, Main Profile, High Profile
• H.265 TypeMain Profile
• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Bit Rate32 Kbps to 8 Mbps

• Audio
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
• APIOpen Network Video Interface, ISAPI, SDK

• Image
• Image SettingsSaturation, brightness, contrast, sharpness
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-In MicrophoneYes
• Built-In SpeakerYes
• ResetYes

• Event
• Basic EventMotion detection, video tampering alarm, exception
• Alarm LinkageUpload to FTP, notify surveillance center, send email, upload to memory card

• General
• Operating Condition

  With supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing)

  With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)

• General FunctionMirror, password protection, watermark
• Power

  12 VDC ± 25%, 0.75 A, max. 9 W, ?5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10 W

• Dimensions

  Camera dimension: 162 mm × 120 mm × 234.2 mm (6.4" × 4.7\" × 9.2\")

  Package dimension: 205 mm × 167 mm × 289 mm (8.1 × 6.6\" × 11.4\")"

• Weight

  Camera weight: 780 g (1.7 lb.)

  With package weight: 1280 g (2.8 lb.)

• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B;

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014;

  IC: ICES-003: Issue 7

• ProtectionIP66 (IEC 60529-2013)
